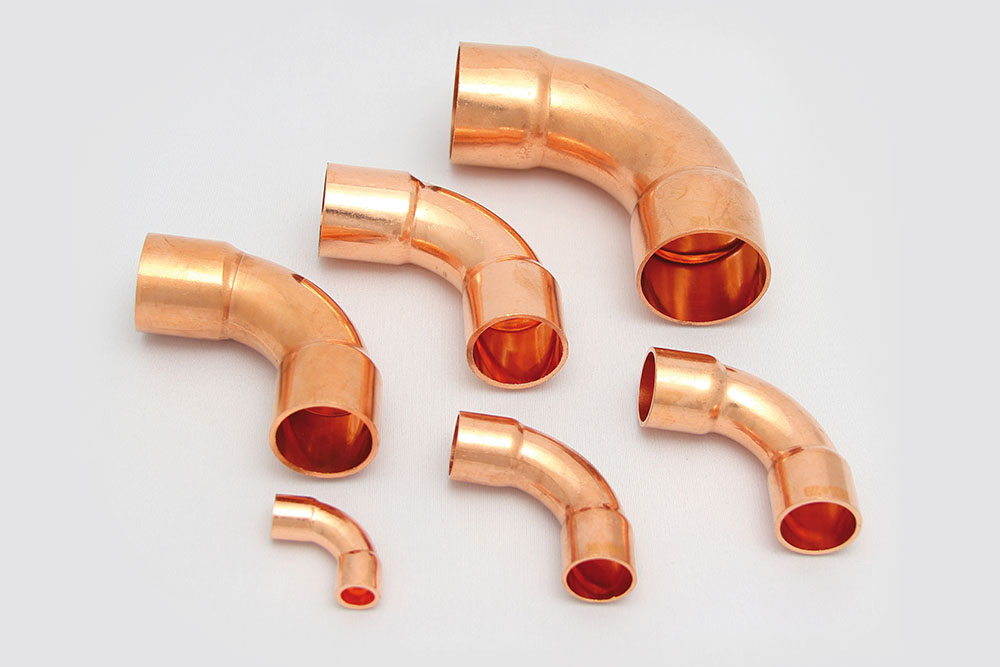

PAC Copper 90° Long Radius Elbows
- PAC copper 90° long radius elbows provide gradual directional changes to reduce pressure drop and maintain smooth refrigerant flow in HVAC-R systems.
- C x C: Copper (cup) manufactured to receive copper tube diameter
- Certifications and Approvals: CRN; ANSI/ASME B16.22, B16.29, B16.18, B16.15, B16.26, B16.24, and B16.23
| Product Number | Description | Weight (LB) | Weight (G) |
|---|---|---|---|
| N-2715 | 1/4" 90° LR Elbow | 0.011 | 5 |
| N-2710 | 5/16" 90° LR Elbow | 0.017 | 7.8 |
| N-2716 | 3/8" 90° LR Elbow | 0.02 | 9 |
| N-2717 | 1/2" 90° LR Elbow | 0.03 | 13.5 |
| N-2722 | 5/8" 90° LR Elbow | 0.05 | 22.5 |
| N-2728 | 3/4" 90° LR Elbow | 0.077 | 35 |
| N-2734 | 7/8" 90° LR Elbow | 0.115 | 52 |
| N-2747 | 1-1/8" 90° LR Elbow | 0.216 | 98 |
| N-2055 | 1-3/8" 90° LR Elbow | 0.364 | 165 |
| N-2063 | 1-5/8" 90° LR Elbow | 0.54 | 245 |
| N-2072 | 2-1/8" 90° LR Elbow | 0.992 | 450 |
| N-2082 | 2-5/8" 90° LR Elbow | 1.499 | 680 |
| N-2092 | 3-1/8" 90° LR Elbow | 2.535 | 1150 |
