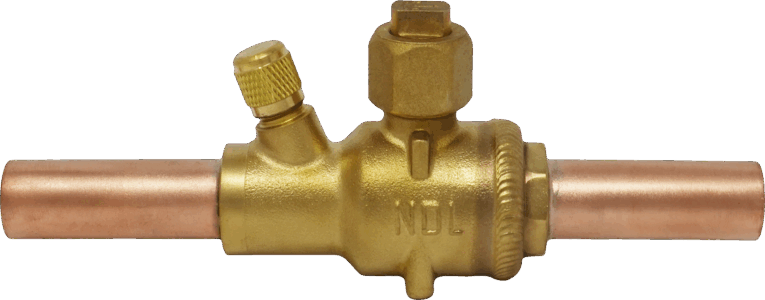

Press Compatible Full Port Ball Valves with Schrader
- Provides secure press-fit installation, full flow, and built-in Schrader access for efficient servicing in refrigeration applications.
- Certifications and Approvals: UL/cUL 207; CE; CRN; Rohs
| Part Number | Description | Weight (LB) | Weight (G) | Maximum Working Pressure (PSIG) | Maximum Working Pressure (BAR) |
|---|---|---|---|---|---|
| NBV02SZ | 1/4" Press Compatible Ball Valve with Schrader | 0.463 | 210 | 900 | 62 |
| NBV02SZBOX | 1/4" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 0.527 | 239 | - | - |
| NBV03SZ | 3/8" Press Compatible Ball Valve with Schrader | 0.474 | 215 | 900 | 62 |
| NBV03SZBOX | 3/8" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 0.537 | 243.5 | - | - |
| NBV04SZ | 1/2" Press Compatible Ball Valve with Schrader | 0.496 | 225 | 900 | 62 |
| NBV04SZBOX | 1/2" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 0.559 | 253.5 | - | - |
| NBV05SZ | 5/8" Press Compatible Ball Valve with Schrader | 0.706 | 320 | 900 | 62 |
| NBV05SZBOX | 5/8" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 0.548 | 248.5 | - | - |
| NBV06SZ | 3/4" Press Compatible Ball Valve with Schrader | 0.992 | 450 | 900 | 62 |
| NBV06SZBOX | 3/4" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 1.085 | 492 | - | - |
| NBV07SZ | 7/8" Press Compatible Ball Valve with Schrader | 1.102 | 500 | 900 | 62 |
| NBV07SZBOX | 7/8" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 1.195 | 542 | - | - |
| NBV09SZ | 1-1/8" Press Compatible Ball Valve with Schrader | 1.896 | 860 | 700 | 48 |
| NBV09SZBOX | 1-1/8" Press Compatible Ball Valve with Schrader including Insulation (Box Kit) | 1.989 | 902 | - | - |
