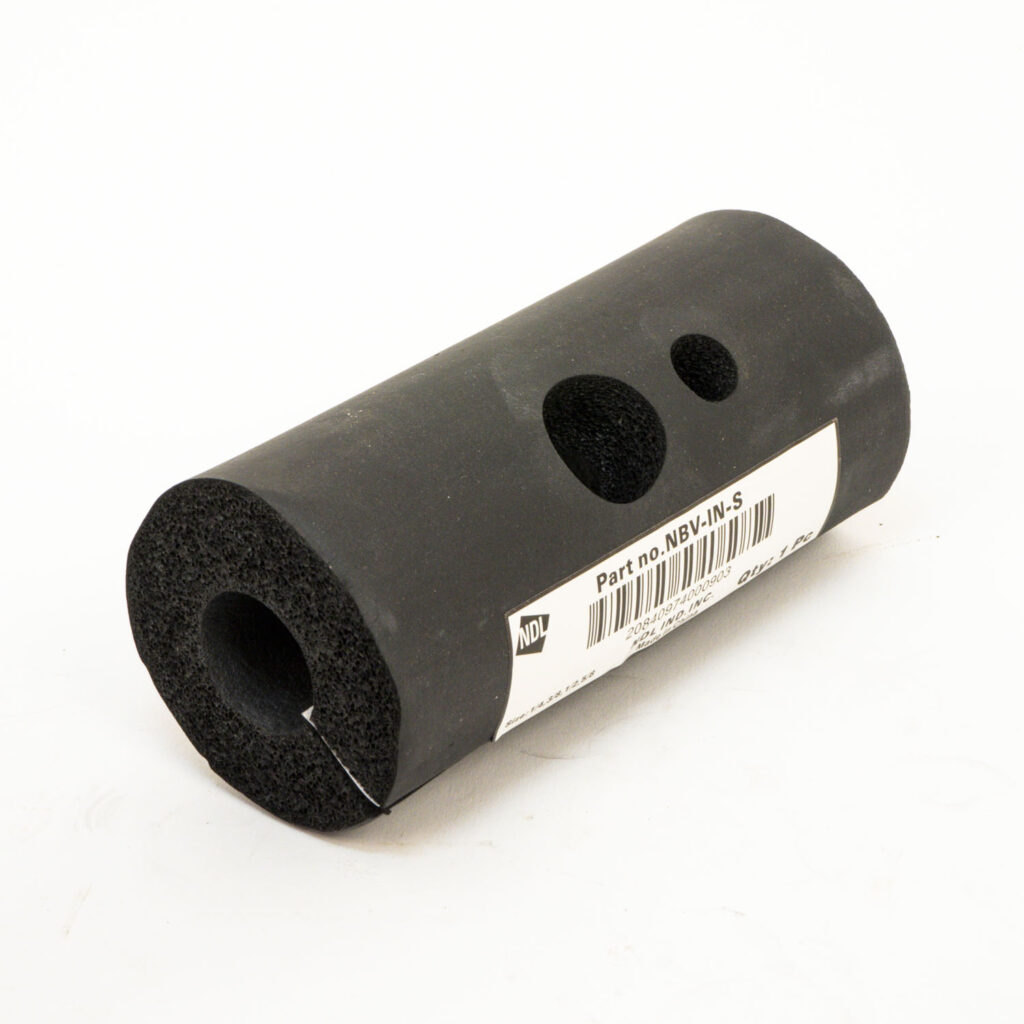

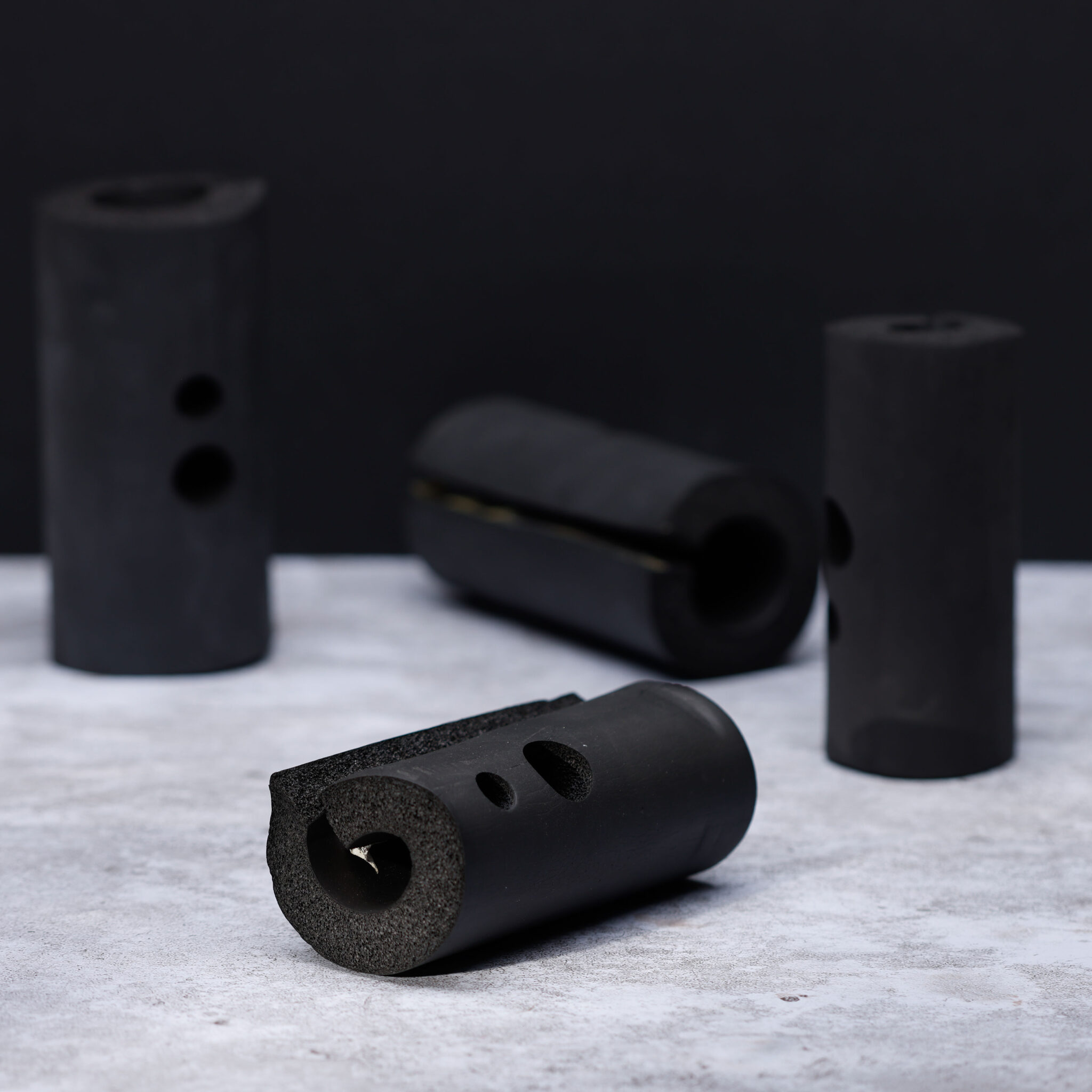

NBV-IN Insulation
Our ball valve insulation is a versatile EPDM-based thermal solution designed to meet the demanding requirements of various heating applications. It combines ease of installation, advanced safety features, and long-lasting durability, making it a dependable choice for professionals in the HVAC and plumbing industries.
Design and Features
- High-Temperature Efficiency
EPDM-based, closed-cell, lightweight elastomeric material specifically designed for solar and steam heating applications with service temperatures up to +150C (302F). - Weatherproof Performance
Engineered for resilience, the insulation features a tough outer skin that simplifies installation and enhances overall strength. Safety is a key focus—its material self-extinguishes and does not melt when exposed to flames, offering peace of mind in high-risk environments. - Durability
Engineered for resilience, the insulation features a tough outer skin that simplifies installation and enhances overall strength. Safety is a key focus—its material self-extinguishes and does not melt when exposed to flames, offering peace of mind in high-risk environments.
Ball Valve Insulation Product Information
| PROPERTIES | NDL-IN | TEST METHOD |
|---|---|---|
| Cell Structure | Closed Cell | – |
| Density lbs/ft3 (Kg/m) | 2.5-5.0 (40-80) | CASTM D1667 |
| Thermal Conductivity BTU.In/Ft2 hr oF (W/m.K) – Mean Temperature | 68°F (20°C), 104°F (40°C), 140°F (60°C), 176°F (80°C), 212°F (100°C), 303°F (150°C) | ASTM C 177 EN ISO 8497tgyfhbn gv |
| Thermal Conductivity BTU.In/Ft2 hr oF (W/m.K) – K- Value | 0.250 (0.360), 0.263 (0.038), 0.277 (0.040), 0.284 (0.041), 0.306 (0.044), 0.395 (0.057) | ASTM C 177 EN ISO 8497tgyfhbn gv |
| Service Temperature | Up to +150°C Up to +302°F | ASTM C 411 |
| Water Absorption | < 10% (by weight) < 0.20% (by volume) | ASTM D 1056 ASTM C209 |
| Ozone Resistance | No Crack | ASTM E 1149 ASTM D 1171 |
| UV Weather Resistance | Very Good | ASTM G 154 |
| Flammability | Self-Extinguishing Class V-0 | ASTM D 635 UL 94 |
| RoHS | Not Detected | EN Restriction of the Use of Hazardous Substances Directive (RoHS) 2002/95/EC |
| Material | EPDM | – |
| Working Temperature | -57°C to 125°C (-71°F to 257°F) | – |
| UV Resistant Flame/Smoke Rating | 15/50 | – |
| Color and Wall Thickness | Black, 3/4″ | – |
