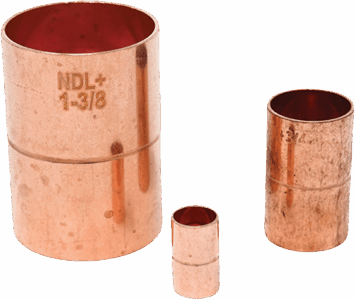

ACR Copper Roll Stop Couplings
- Connects two lengths of ACR copper tubing in refrigeration systems, with an internal stop to ensure proper tube alignment and insertion depth.
- C x C: Copper (cup) manufactured to receive copper tube diameter
- Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″
| Part Number | Description | Weight (LB) | Weight (G) |
|---|---|---|---|
| W1003 | 1/4" Coupling w/roll stop | 0.006 | 2.676 |
| W1009 | 3/8" Coupling w/roll stop | 0.009 | 4.173 |
| W1017 | 1/2" Coupling w/roll stop | 0.016 | 7.076 |
| W1022 | 5/8" Coupling w/roll stop | 0.03 | 13.472 |
| W1028 | 3/4" Coupling w/roll stop | 0.043 | 19.459 |
| W1034 | 7/8" Coupling w/roll stop | 0.091 | 41.458 |
| W1047 | 1-1/8" Coupling w/roll stop | 0.151 | 68.492 |
| W1055 | 1-3/8" Coupling w/roll stop | 0.165 | 74.979 |
| W1063 | 1-5/8" Coupling w/roll stop | 0.245 | 110.994 |
| W1072 | 2-1/8" Coupling w/roll stop | 0.425 | 192.958 |
| W1082 | 2-5/8" Coupling w/roll stop | 0.723 | 327.992 |
| W1092 | 3-1/8" Coupling w/roll stop | 1.03 | 466.973 |
| W10100 | 3-5/8" Coupling w/roll stop | 1.373 | 622.963 |
| W10107 | 4-1/8" Coupling w/roll stop | 2.094 | 949.958 |
