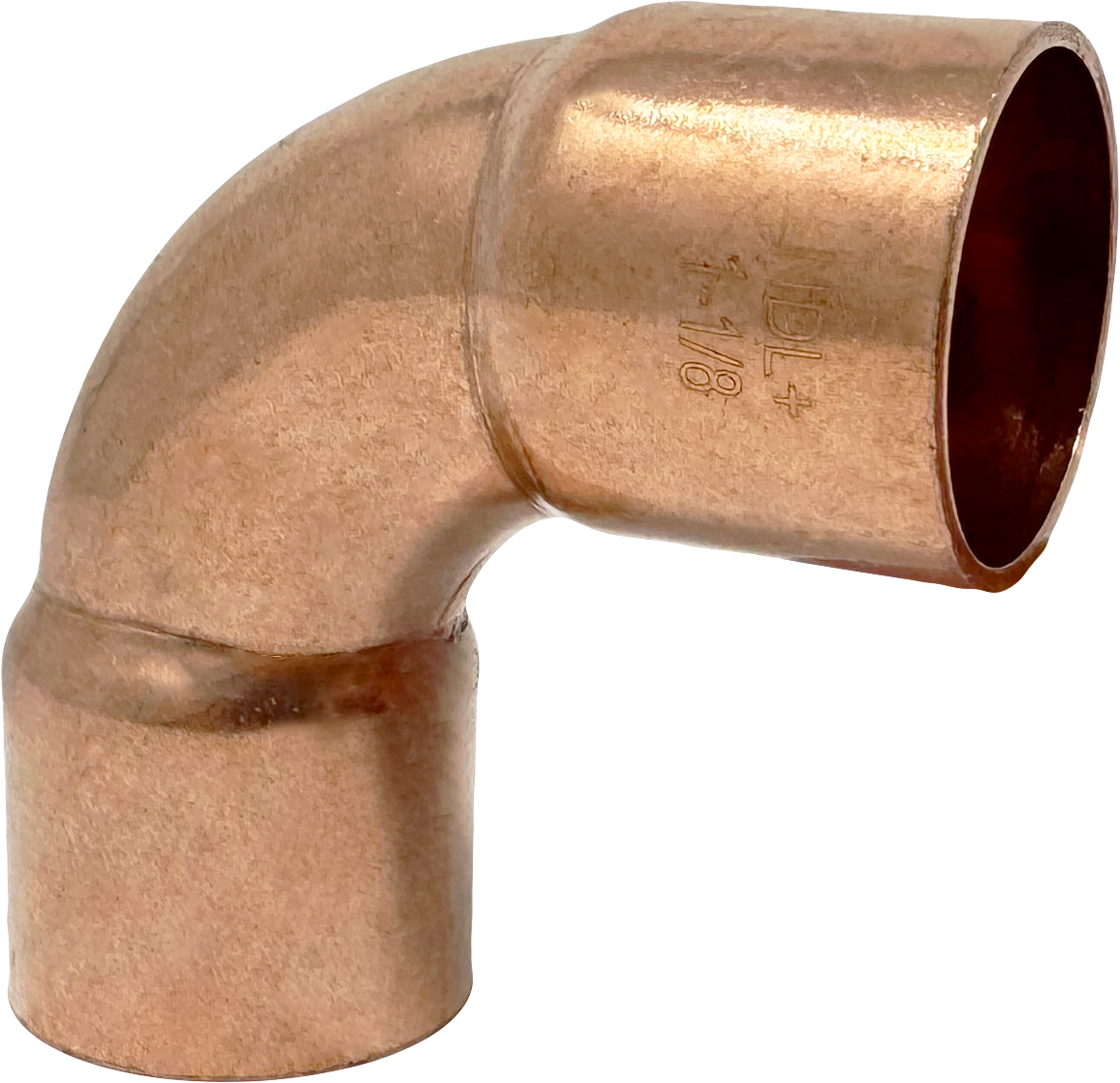

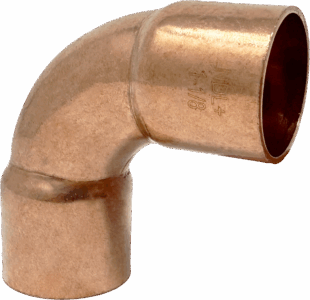

ACR Copper 90º Short Radius Elbows
- Changes tubing direction in tight spaces with a compact 90° turn, ideal for space-constrained refrigeration system layouts.
- C x C: Copper (cup) manufactured to receive copper tube diameter
- Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″
| Part Number | Description | Weight (LB) | Weight (G) |
|---|---|---|---|
| W2003 | 1/4" 90° Short Radius Elbow | 0.014 | 6.5 |
| W2009 | 3/8" 90° Short Radius Elbow | 0.036 | 16.5 |
| W2017 | 1/2" 90° Short Radius Elbow | 0.031 | 14.2 |
| W2022 | 5/8" 90° Short Radius Elbow | 0.098 | 44.5 |
| W2028 | 3/4" 90° Short Radius Elbow | 0.09 | 41 |
| W2034 | 7/8" 90° Short Radius Elbow | 0.121 | 55 |
| W2047 | 1-1/8" 90° Short Radius Elbow | 0.238 | 108 |
| W2084 | 1-3/8" 90° Short Radius Elbow | 0.331 | 150 |
| W2085 | 1-5/8" 90° Short Radius Elbow | 0.463 | 210 |
| W2086 | 2-1/8" 90° Short Radius Elbow | 0.761 | 345 |
| W2087 | 2-5/8" 90° Short Radius Elbow | 1.323 | 600 |
| W2088 | 3-1/8" 90° Short Radius Elbow | 1.764 | 800 |
| W2089 | 3-5/8" 90° Short Radius Elbow | 2.641 | 1197.9 |
