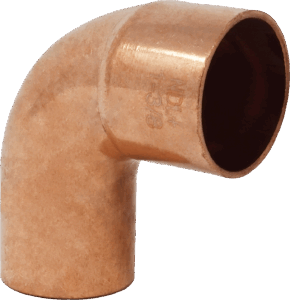

ACR Copper 90º Long Radius Street Elbows

Connects tubing to a fitting at a 90° angle with a long radius design for smoother flow and reduced pressure drop in refrigeration systems.

FTG x C Connection – Fittings end made to copper tube diameter x copper (cup) manufactured to receive copper tube diameter.

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Part Number	Description	Weight (LB)	Weight (G)
W2809	3/8" 90° Long Radius Street Elbow	0.043	19.4
W2817	1/2" 90° Long Radius Street Elbow	0.049	22
W2822	5/8" 90° Long Radius Street Elbow	0.057	26
W2828	3/4" 90° Long Radius Street Elbow	0.101	46
W2834	7/8" 90° Long Radius Street Elbow	0.196	89
W2847	1-1/8" 90° Long Radius Street Elbow	0.269	122
W2384	1-3/8" 90° Long Radius Street Elbow	0.362	164
W2350	1-3/8" 90° Long Radius Street Elbow	0.412	187
W2385	1-5/8" 90° Long Radius Street Elbow	0.467	212
W2355	1-5/8" 90° Long Radius Street Elbow	0.573	260
W2386	2-1/8" 90° Long Radius Street Elbow	0.794	360
W2359	2-1/8" 90° Long Radius Street Elbow	1.167	529.2
W2387	2-5/8" 90° Long Radius Street Elbow	1.19	540
W2363	2-5/8" 90° Long Radius Street Elbow	1.883	854
W2368	3-1/8" 90° Long Radius Street Elbow	3.307	1500
W2393	3-5/8" 90° Long Radius Street Elbow	5.732	2600
W2395	4-1/8" 90° Long Radius Street Elbow	6.812	3090
