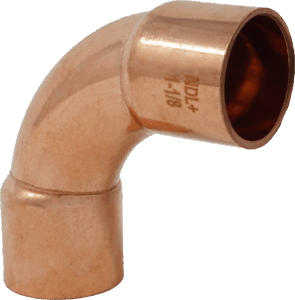

ACR Copper 90º Long Radius Elbows
- Changes tubing direction by 90° in refrigeration systems with a long radius design for smoother flow and reduced pressure drop.
- C x C: Copper (cup) manufactured to receive copper tube diameter
- Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″
| Part Number | Description | Weight (LB) | Weight (G) |
|---|---|---|---|
| W2715 | 1/4" 90° Long Radius Elbow | 0.014 | 6.3 |
| W2710 | 5/16" 90° Long Radius Elbow | 0.022 | 10 |
| W2716 | 3/8" 90° Long Radius Elbow | 0.051 | 23 |
| W2717 | 1/2" 90° Long Radius Elbow | 0.051 | 23 |
| W2722 | 5/8" 90° Long Radius Elbow | 0.088 | 40 |
| W2728 | 3/4" 90° Long Radius Elbow | 0.104 | 47 |
| W2734 | 7/8" 90° Long Radius Elbow | 0.199 | 90.3 |
| W2747 | 1-1/8" 90° Long Radius Elbow | 0.401 | 182 |
| W2055 | 1-3/8" 90° Long Radius Elbow | 0.417 | 189 |
| W2063 | 1-5/8" 90° Long Radius Elbow | 0.575 | 261 |
| W2072 | 2-1/8" 90° Long Radius Elbow | 1.174 | 532.3 |
| W2082 | 2-5/8" 90° Long Radius Elbow | 1.896 | 860 |
| W2092 | 3-1/8" 90° Long Radius Elbow | 3.23 | 1465.1 |
| W2093 | 3-5/8" 90° Long Radius Elbow | 5.732 | 2600 |
| W2095 | 4-1/8" 90° Long Radius Elbow | 6.812 | 3089.9 |
