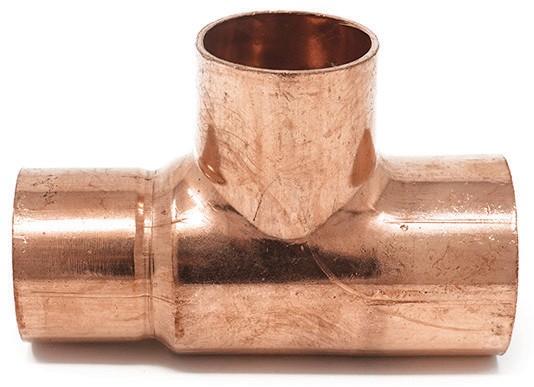

ACR Copper Reducing Tees

ACR Copper Reducing Tees connect three copper tubes of different sizes in refrigeration systems, allowing smooth flow transitions and branch connections.

C x C x C: Copper (cup) manufactured to receive copper tube diameter

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Part Number	Description	Weight (LB)	Weight (G)
W40324	3/8" x 3/8" x 1/4" Reducing Tee	0.031	14
W40350	1/2" x 1/2" x 1/4" Reducing Tee	0.04	18
W4002	1/2" x 1/2" x 3/8" Reducing Tee	0.041	18.5
W4014	5/8" x 5/8" x 1/4" Reducing Tee	0.062	28
W4008	5/8" x 5/8" x 3/8" Reducing Tee	0.071	32
W4007	5/8" x 5/8" x 1/2" Reducing Tee	0.073	33
W4020	3/4" x 3/4" x 3/8" Reducing Tee	0.099	45
W4019	3/4" x 3/4" x 1/2" Reducing Tee	0.129	58.5
W4034	7/8" x 7/8" x 1/2" Reducing Tee	0.143	65
W4035	7/8" x 7/8" x 3/8" Reducing Tee	0.143	65
W4033	7/8" x 7/8" x 5/8" Reducing Tee	0.144	65.5
W4051	1-1/8" x 1-1/8" x 5/8" Reducing Tee	0.209	95
W4052	1-1/8" x 1-1/8" x 1/2" Reducing Tee	0.209	95
W4050	1-1/8" x 1-1/8" x 3/4" Reducing Tee	0.249	113
W4049	1-1/8" x 1-1/8" x 7/8" Reducing Tee	0.265	120
W4072	1-3/8" x 1-3/8" x 1/2" Reducing Tee	0.287	130
W4071	1-3/8" x 1-3/8" x 5/8" Reducing Tee	0.342	155
W4088	1-5/8" x 1-5/8" x 5/8" Reducing Tee	0.381	173
W4070	1-3/8" x 1-3/8" x 7/8" Reducing Tee	0.408	185
W4069	1-3/8" x 1-3/8" x 1-1/8" Reducing Tee	0.419	190
W4089	1-5/8" x 1-5/8" x 1/2" Reducing Tee	0.578	262
W4087	1-5/8" x 1-5/8" x 7/8" Reducing Tee	0.595	270
W4086	1-5/8" x 1-5/8" x 1-1/8" Reducing Tee	0.617	280
W40107	2-1/8" x 2-1/8" x 5/8" Reducing Tee	0.668	303
W40108	2-1/8" x 2-1/8" x 1/2" Reducing Tee	0.679	308
W4085	1-5/8" x 1-5/8" x 1-3/8" Reducing Tee	0.688	312
W40106	2-1/8" x 2-1/8" x 7/8" Reducing Tee	0.765	347
W40105	2-1/8" x 2-1/8" x 1-1/8" Reducing Tee	0.937	425
W40104	2-1/8" x 2-1/8" x 1-3/8" Reducing Tee	1.146	520
W40103	2-1/8" x 2-1/8" x 1-5/8" Reducing Tee	1.29	585
W40124	2-5/8" x 2-5/8" x 2-1/8" Reducing Tee	1.51	685
W40125	2-5/8" x 2-5/8" x 1-5/8" Reducing Tee	1.874	850
W40127	2-5/8" x 2-5/8" x 1-1/8" Reducing Tee	1.909	866
W40129	2-5/8" x 2-5/8" x 5/8" Reducing Tee	1.909	866
W40150	3-1/8" x 3-1/8" x 2-1/8" Reducing Tee	2.275	1032
W40149	3-1/8" x 3-1/8" x 1-5/8" Reducing Tee	2.381	1080
W40148	3-1/8" x 3-1/8" x 1-3/8" Reducing Tee	2.383	1081

ACR Copper Reducing Tees

ACR Copper Reducing Tees connect three copper tubes of different sizes in refrigeration systems, allowing smooth flow transitions and branch connections.

C x C x C: Copper (cup) manufactured to receive copper tube diameter

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Reach out today

Part Number	Description	Weight (LB)	Weight (G)
W40330	3/8" x 1/4" x 3/8" Reducing Tee	0.028	12.5
W4003	1/2" x 3/8" x 1/2" Reducing Tee	0.049	22
W4009	5/8" x 1/2" x 5/8" Reducing Tee	0.077	35
W4012	5/8" x 3/8" x 5/8" Reducing Tee	0.088	40
W4041	7/8" x 5/8" x 7/8" Reducing Tee	0.176	80
W4055	1-1/8" x 7/8" x 1-1/8" Reducing Tee	0.331	150
W4061	1-1/8" x 5/8" x 1-1/8" Reducing Tee	0.337	153
W4078	1-3/8" x 7/8" x 1-3/8" Reducing Tee	0.529	240
W4090	1-5/8" x 1-3/8" x 1-5/8" Reducing Tee	0.769	349
W4095	1-5/8" x 1-1/8" x 1-5/8" Reducing Tee	0.774	351
W4099	1-5/8" x 7/8" x 1-5/8" Reducing Tee	0.783	355
W40109	2-1/8" x 1-5/8" x 2-1/8" Reducing Tee	1.59	721
W40115	2-1/8" x 1-3/8" x 2-1/8" Reducing Tee	1.874	850

ACR Copper Reducing Tees

ACR Copper Reducing Tees connect three copper tubes of different sizes in refrigeration systems, allowing smooth flow transitions and branch connections.

C x C x C: Copper (cup) manufactured to receive copper tube diameter

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Reach out today

Part Number	Description	Weight (LB)	Weight (G)
W4004	1/2" x 3/8" x 3/8" Reducing Tee	0.049	22
W4010	5/8" x 1/2" x 1/2" Reducing Tee	0.068	31
W4037	7/8" x 3/4" x 3/4" Reducing Tee	0.165	75
W4043	7/8" x 5/8" x 5/8" Reducing Tee	0.187	85
W4056	1-1/8" x 7/8" x 7/8" Reducing Tee	0.287	130

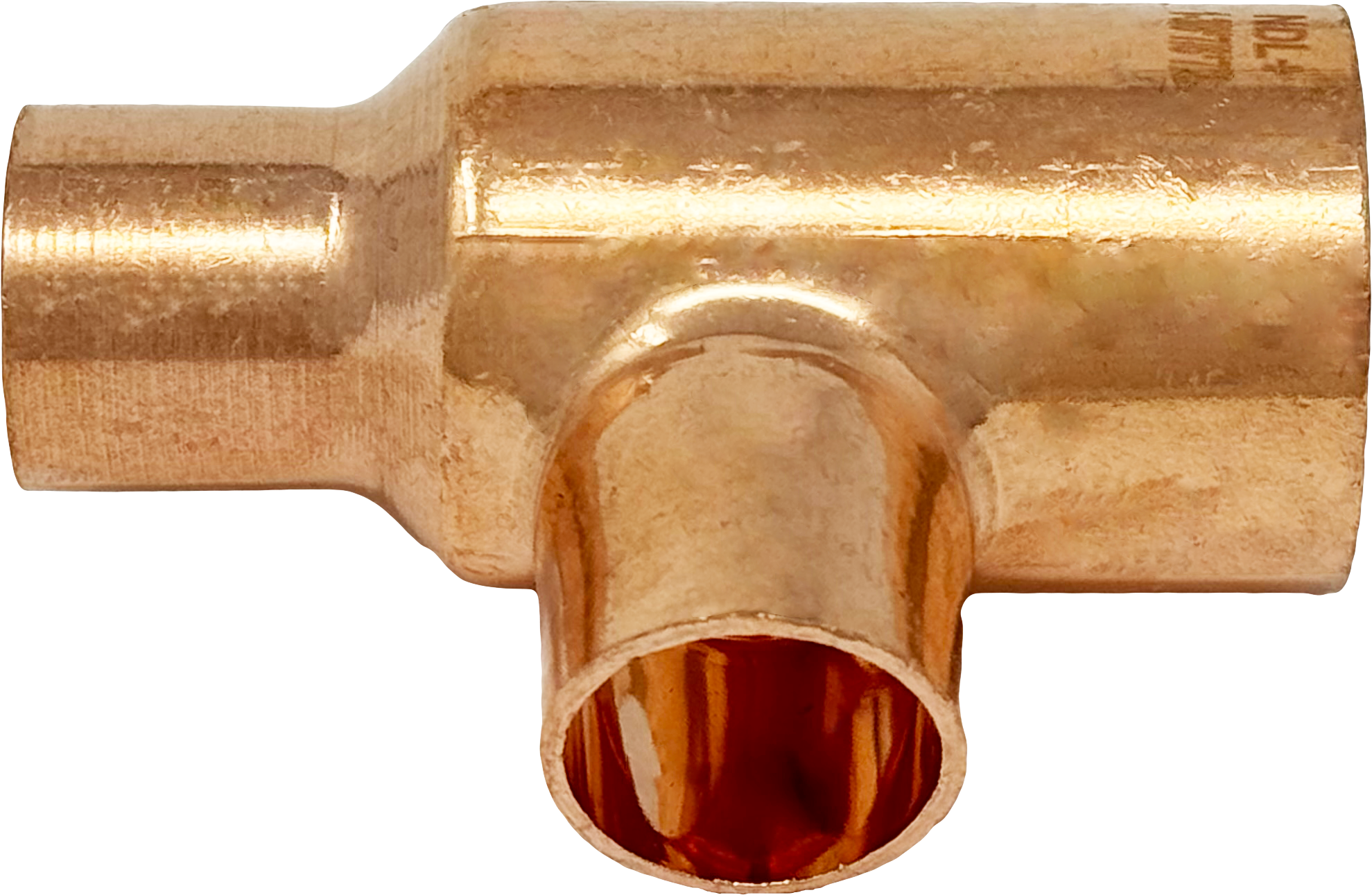

W4080	1-3/8" x 7/8" x 7/8" Reducing Tee	0.441	200
W4074	1-3/8" x 1-1/8" x 1-1/8" Reducing Tee	0.485	220
W4091	1-5/8" x 1-3/8" x 1-3/8" Reducing Tee	0.723	328
W40110	2-1/8" x 1-5/8" x 1-5/8" Reducing Tee	1.323	600
W40131	2-5/8" x 2-1/8" x 2-1/8" Reducing Tee	1.836	833

ACR Copper Reducing Tees

ACR Copper Reducing Tees connect three copper tubes of different sizes in refrigeration systems, allowing smooth flow transitions and branch connections.

C x C x C: Copper (cup) manufactured to receive copper tube diameter

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Reach out today

Part Number	Description	Weight (LB)	Weight (G)
W4011	5/8" x 1/2" x 3/8" Reducing Tee	0.077	35
W4045	7/8" x 5/8" x 3/8" Reducing Tee	0.165	75
W4044	7/8" x 5/8" x 1/2" Reducing Tee	0.187	85
W4076	1-3/8" x 1-1/8" x 5/8" Reducing Tee	0.33	149.9
W4075	1-3/8" x 1-1/8" x 7/8" Reducing Tee	0.441	200
W4079	1-3/8" x 7/8" x 1-1/8" Reducing Tee	0.549	249
W4093	1-5/8" x 1-3/8" x 7/8" Reducing Tee	0.661	300
W4092	1-5/8" x 1-3/8" x 1-1/8" Reducing Tee	0.692	314

ACR Copper Reducing Tees

ACR Copper Reducing Tees connect three copper tubes of different sizes in refrigeration systems, allowing smooth flow transitions and branch connections.

C x C x C: Copper (cup) manufactured to receive copper tube diameter

Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8″

Reach out today

Part Number	Description	Weight (LB)	Weight (G)
W40368	1/4" x 1/4" x 3/8" Reducing Tee	0.035	16
W4005	3/8" x 3/8" x 1/2" Reducing Tee	0.053	24
W4015	1/2" x 1/2" x 5/8" Reducing Tee	0.066	30
W4016	3/8" x 3/8" x 5/8" Reducing Tee	0.088	40
W4065	7/8" x 7/8" x 1-1/8" Reducing Tee	0.309	140
W40100	1-3/8" x 1-3/8" x 1-5/8" Reducing Tee	0.727	329.7
W40121	1-5/8" x 1-5/8" x 2-1/8" Reducing Tee	1.542	699.4
