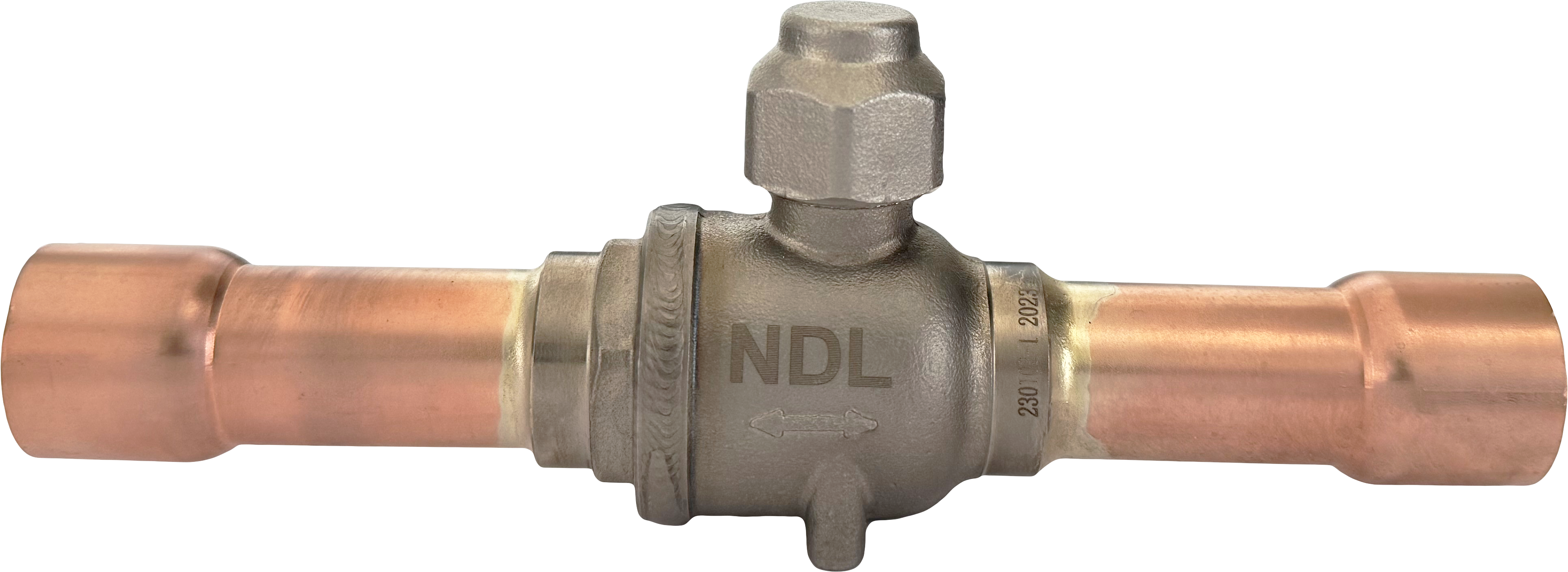

CO2 C194 Copper Ball Valves

Controls flow in CO₂ refrigeration systems with a high-pressure quarter-turn shutoff, featuring C194 copper ends for easy brazing to copper tubing.

Certifications and Approvals: CE; RoHS; UL; CRN

Part Number	Connections W (IN)	Ball Port Size (MM)	KV (M3/H)	CV (GPM)
CO2-02C	0.25” (1/4")	10	0.8	0.9
CO2-03C	0.375” (3/8")	10	3	3.5
CO2-04C	0.5” (1/2")	10	5	5.8
CO2-05C	0.625” (5/8")	14	17	19.7
CO2-06C	0.75” (3/4")	18	17	19.7
CO2-07C	0.875” (7/8")	19	29	33.5
CO2-09C	1.125” (1-1/8")	25	51	59
CO2-11C	1.375” (1-3/8")	31	81	93.6
CO2-13C	1.625” (1-5/8")	37	105	121.4
CO2-17C	2.125” (2-1/8")	50	214	247.4
